| Description | CNC-M-001 | CNC-M-002 |
|---|---|---|
| Make | DMG MORI | DMG MORI |
| Model | NHX6300 | NHX6300 Gen2 |
| Max swing dia | Ø 1050 mm | Ø 1050 mm |
| Max component height | 1350 mm | 1350 mm |
| Machining range (X*Y*Z) | 1000mm * 1000mm * 950mm | 1000mm * 1000mm * 950mm |
| Maximum Weight of component including Fixture | 1500kgs | 1500kgs |
| Maximum tool length | 630mm | 630mm |
| Maximum tool Weight | 30Kgs | 30Kgs |
| Maximum Spindle Speed | 8000 rpm | 12000 rpm |
| Description | CNC-M-003 | CNC-M-004 |
|---|---|---|
| Make | DMG MORI | DMG MORI |
| Model | NHX6300 | NHX6300 Gen2 |
| Max swing dia | Ø 1050 mm | Ø 1050 mm |
| Max component height | 1350 mm | 1350 mm |
| Machining range (X*Y*Z) | 1000mm * 1000mm * 950mm | 1000mm * 1000mm * 950mm |
| Maximum Weight of component including Fixture | 1500kgs | 1500kgs |
| Maximum tool length | 630mm | 630mm |
| Maximum tool Weight | 30Kgs | 30Kgs |
| Maximum Spindle Speed | 8000 rpm | 12000 rpm |

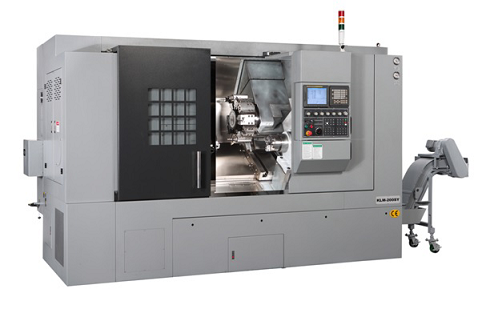

Horizontal Turning Center Machining Range
| Description | CNC-M-003 | CNC-M-004 |
|---|---|---|
| Make | MORI SEIKI | MORI SEIKI |
| Model | SL35-B | SL35-B |
| Max swing dia | Ø 650 mm | Ø 650 mm |
| Max component Length | 700 mm | 700 mm |
| Max Turning Dia | Ø 450 mm | Ø 450 mm |
| Maximum Weight of component including Fixture | 400kgs | 400kgs |
| Spindle Bore | 90mm | 90mm |
| Maximum tool Weight | 45Kgs | 45Kgs |
| Spindle type | A2-11 | A2-11 |
| Tail-stock | MT-5 | MT-5 |
| Description | CON-M-001 |
|---|---|
| Make | HMT |
| Model | FN-3 |
| Max component height | 300mm |
| Machining range (X*Y*Z) | 1200mm * 400mm * 250mm |
| Maximum Weight of component including Fixture | 400kgs |
| Maximum tool length | 200mm |
| Maximum tool Weight | 12.5kgs |

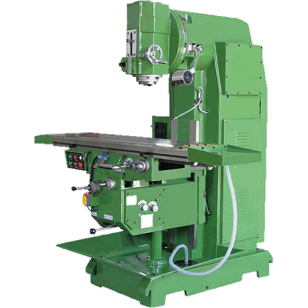

Conventional Milling
| Description | CMM-001 |
|---|---|
| Make | CARL ZEISS |
| Model | CONTURA G2 |
| Measuring range (X*Y*Z) | 1200mm * 1800mm * 1000mm |
| Maximum Weight of component including Fixture | 700kgs |
